Rigid pleated panel
FIRSTAIR model: Confirm with your quotation

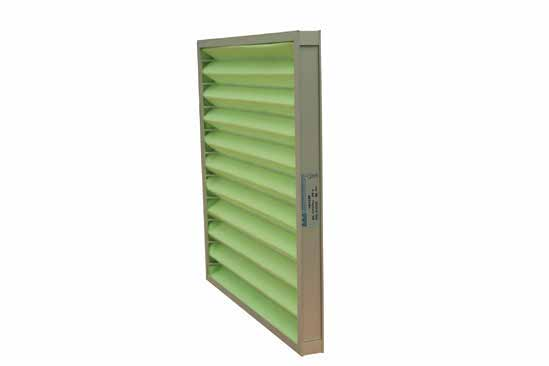

A framed, self-supporting pleated panel for compatible prefilter housings.
A framed, self-supporting pleated panel for compatible prefilter housings.

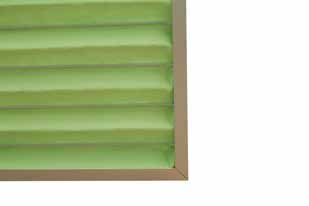

Rigid panel geometry Closely arranged pleats Select frame depth and media grade. Select the configuration against the equipment’s available space, operating airflow and installation requirements.
Pleated synthetic media in a rigid frame
Aluminum alloy, coated steel, galvanized steel, stainless steel or polypropylene
| Specification | Available configuration |
|---|---|
| Construction | Pleated synthetic media in a rigid frame |
| Frame options | Aluminum alloy, coated steel, galvanized steel, stainless steel or polypropylene |
| Depth | 46 mm |
| Grade system | EN 779 |
| Custom sizes | Request a quote with actual dimensions and quantity. |
Values apply only to the documented configurations. No certification or regulatory compliance is implied for unverified configurations.
| Dimensions (W × H × D) | Configuration | Documented airflow / resistance |
|---|---|---|
| 595 × 595 × 46 mm | G3 | 3400 m³/h / 85 Pa initial |
| 595 × 495 × 46 mm | G3 | 2800 m³/h / 85 Pa initial |
| 595 × 295 × 46 mm | G3 | 1700 m³/h / 85 Pa initial |
| 595 × 595 × 46 mm | G4 | 3400 m³/h / 95 Pa initial |
| 595 × 495 × 46 mm | G4 | 2800 m³/h / 95 Pa initial |
| 595 × 295 × 46 mm | G4 | 1700 m³/h / 95 Pa initial |
| 595 × 595 × 46 mm | M5 | 3400 m³/h / 105 Pa initial |
| 595 × 495 × 46 mm | M5 | 2800 m³/h / 105 Pa initial |
| 595 × 295 × 46 mm | M5 | 1700 m³/h / 105 Pa initial |
Matching dimensions alone do not establish equivalent performance. Include the current filter label or specification.
Request the current technical data sheet, brochure or installation guidance for your selected configuration from our team.
