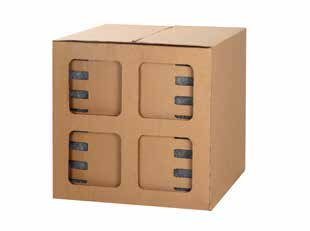

Full box assembly
FIRSTAIR model: Confirm with your quotation
A box-format overspray collector that directs the air through an internal paper collection structure.
A box-format overspray collector that directs the air through an internal paper collection structure.
Self-contained box format Paper collection structure Size-specific airflow selection. Select the configuration against the equipment’s available space, operating airflow and installation requirements.
Kraft paper
Labyrinth paper channels
| Specification | Available configuration |
|---|---|
| Media | Kraft paper |
| Construction | Labyrinth paper channels |
| Custom sizes | Request a quote with actual dimensions and quantity. |
Values apply only to the documented configurations. No certification or regulatory compliance is implied for unverified configurations.
| Dimensions (W × H × D) | Configuration | Documented airflow / resistance |
|---|---|---|
| 480 × 480 × 300 mm | Box collector | 420 m³/h / 45 Pa |
| 485 × 485 × 490 mm | Box collector | 450 m³/h / 65 Pa |
| 500 × 500 × 500 mm | Box collector | 500 m³/h / 70 Pa |
Matching dimensions alone do not establish equivalent performance. Include the current filter label or specification.
Request the current technical data sheet, brochure or installation guidance for your selected configuration from our team.
