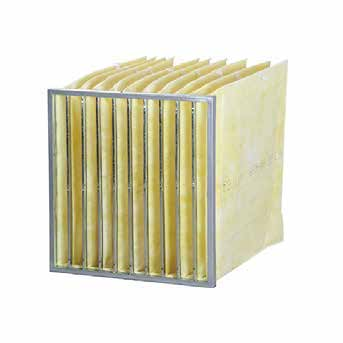

Fiberglass Pocket Filters
Fiberglass Pocket Filters
FIRSTAIR model: Confirm with your quotation
Fiberglass pocket media provides an alternative construction for commercial and industrial filter banks.
MEDIAFiberglass
CONFIGURATIONApplication specific
- Fiberglass media construction
- Multiple-pocket format
- Match header and depth to the housing
PRODUCT OVERVIEW
Designed around your process.
Fiberglass pocket media provides an alternative construction for commercial and industrial filter banks.
Fine fiberglass media is formed into V-shaped pockets. This construction is an alternative to synthetic pockets when the specified media and operating conditions call for glass fiber.
The configuration table pairs each efficiency grade with its documented dimensions, pocket count and initial resistance at the listed airflow. Confirm free space behind the header before ordering.
Typical applications
Commercial HVAC →Manufacturing →Clean / Controlled Environments →Features
- Fiberglass media construction
- Multiple-pocket format
- Match header and depth to the housing
PRODUCT CONSTRUCTION
Inside the filter.
Media
Fiberglass
Header materials
Aluminum alloy, coated steel, galvanized steel, stainless steel or polypropylene, by configuration
Header dimensions
595 × 595, 495 × 595 or 295 × 595 mm
TECHNICAL INFORMATION
Technical data & configurations.
| Specification | Available configuration |
|---|---|
| Media | Fiberglass |
| Header materials | Aluminum alloy, coated steel, galvanized steel, stainless steel or polypropylene, by configuration |
| Pocket depth | 600 mm in documented configurations |
| Header dimensions | 595 × 595, 495 × 595 or 295 × 595 mm |
| Pocket counts | 8, 6 or 4 according to header size |
| Documented grade system | EN 779; no MERV conversion assigned |
| Custom sizes | Request a quote with actual dimensions and quantity. |
Values apply only to the documented configurations. No certification or regulatory compliance is implied for unverified configurations.
SIZE & INSTALLATION
Get the right fit.
| Dimensions (W × H × D) | Configuration | Documented airflow / resistance |
|---|---|---|
| 595 × 595 × 600 mm | M5 · 8 pockets | 3400 m³/h / 80 Pa initial |
| 495 × 595 × 600 mm | M5 · 6 pockets | 2800 m³/h / 80 Pa initial |
| 295 × 595 × 600 mm | M5 · 4 pockets | 1700 m³/h / 80 Pa initial |
| 595 × 595 × 600 mm | M6 · 8 pockets | 3400 m³/h / 95 Pa initial |
| 495 × 595 × 600 mm | M6 · 6 pockets | 2800 m³/h / 95 Pa initial |
| 295 × 595 × 600 mm | M6 · 4 pockets | 1700 m³/h / 95 Pa initial |
| 595 × 595 × 600 mm | F7 · 8 pockets | 3400 m³/h / 110 Pa initial |
| 495 × 595 × 600 mm | F7 · 6 pockets | 2800 m³/h / 110 Pa initial |
| 295 × 595 × 600 mm | F7 · 4 pockets | 1700 m³/h / 110 Pa initial |
| 595 × 595 × 600 mm | F8 · 8 pockets | 3400 m³/h / 130 Pa initial |
| 495 × 595 × 600 mm | F8 · 6 pockets | 2800 m³/h / 130 Pa initial |
| 295 × 595 × 600 mm | F8 · 4 pockets | 1700 m³/h / 130 Pa initial |
| 595 × 595 × 600 mm | F9 · 8 pockets | 3400 m³/h / 150 Pa initial |
| 495 × 595 × 600 mm | F9 · 6 pockets | 2800 m³/h / 150 Pa initial |
| 295 × 595 × 600 mm | F9 · 4 pockets | 1700 m³/h / 150 Pa initial |
Matching dimensions alone do not establish equivalent performance. Include the current filter label or specification.
