FIRSTAIR® FA-MV 95S-F8 V-Bank Mini-Pleat Filter
FIRSTAIR model: FA-MV 95S-F8
High-Efficiency Synthetic V-Bank Filtration for Commercial HVAC & Industrial Applications
Performance data applies to the documented full-size 1/1 unit. Confirm airflow and resistance for the selected size.
Need a Replacement Filter? Send Us Your Size or Part NumberHigh media area. Rigid construction.
The FIRSTAIR® FA-MV 95S-F8 is a high-efficiency rigid V-bank mini-pleat air filter engineered for commercial HVAC and industrial air-handling systems. Its lightweight aerodynamic construction and high-media-area mini-pleat design provide high filtration efficiency with low initial resistance.
The synthetic media pack uses progressively structured depth-loading melt-blown microfiber. The rigid pleat construction is designed to maintain stability under moisture-laden and variable airflow conditions.
Engineered Construction
Rigid V-bank construction
Designed for turbulent and variable airflow conditions.
Synthetic mini-pleat media
Progressively structured depth-loading melt-blown microfiber provides a high media area.
Low pressure drop
High filtration efficiency with low initial resistance.
Moisture-resistant media pack
Rigid pleat construction designed to remain stable in moisture-laden airflow.
Lightweight aerodynamic design
Designed for easier handling and installation.
Clip-on pre-filter attachment
A clip-on feature allows a pre-filter to attach to the front frame.
- No metal components
- No glass fibers
- Silicone-free
- Free of halogens
- 100% incinerable construction
Documented performance.
- ASHRAE 52.2 Rating
- MERV 15 @ 2,000 CFM
- F8
- Listed on product test documentation
- Average Dust Spot Efficiency
- 97.8% @ 1–3 µm
- Initial Pressure Drop
- 71 Pa / 0.287 in. w.g.
- Recommended Final Pressure Drop
- 450 Pa / 1.8 in. w.g.
- Test Airflow
- 3,400 m³/h / 2,000 CFM
- Temperature Resistance
- 70°C / 150°F
- Relative Humidity
- 100%
- Media
- Synthetic
F8 is listed on the product test documentation; no separate testing standard is specified for that designation. Values and paired units are reproduced as stated in the supplied technical sheet.
Available Sizes
Choose the nominal size, then check the front header and fitting dimensions against your housing.
| Nominal Size | Front Header | Depth | Vees | Media Area | Approx. Weight |
|---|---|---|---|---|---|
| 24 × 24 | 592 × 592 × 22 mm | 315 mm / 12.5 in. | 4 | 16 m² / 170 ft² | 10.0 lb |
| 12 × 24 | 287 × 592 × 22 mm | 315 mm / 12.5 in. | 2 | 8 m² / 85 ft² | 5.0 lb |
| 20 × 24 | 490 × 592 × 22 mm | 315 mm / 12.5 in. | 3 | 13.3 m² / 142 ft² | 8.3 lb |
Fitting dimensions
- 24 × 24
- 610 × 610 mm
- 12 × 24
- 305 × 610 mm
- 20 × 24
- 508 × 610 mm
Check actual installation dimensions before ordering. The 12 × 24 and 20 × 24 configurations require size-specific airflow and pressure-drop confirmation.
Tested Performance
The fractional-efficiency graph and resistance curve below are reproduced from the supplied FIRSTAIR technical sheet without redrawing the curves or changing their values.
Burst Strength: 3,000 Pa / 12 in. w.g.

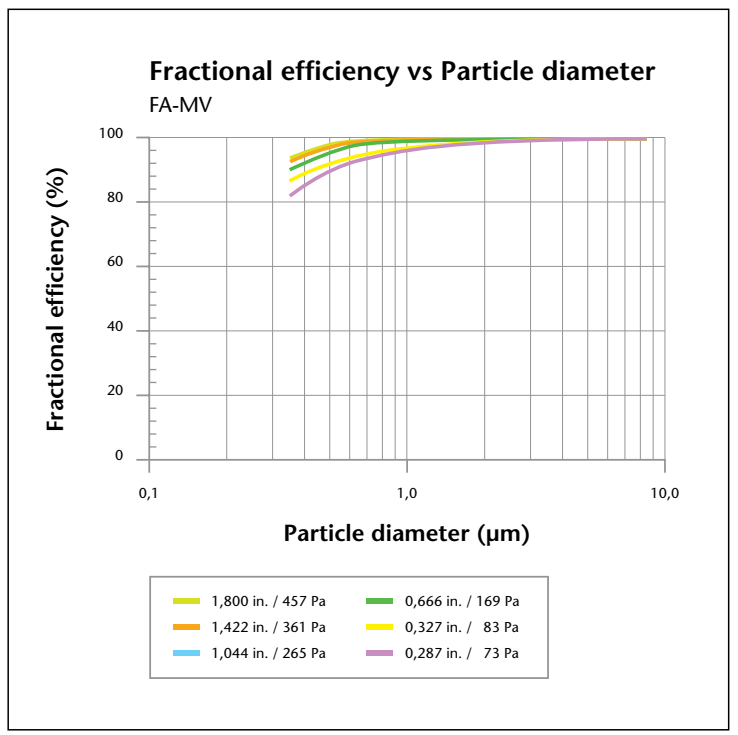

Fractional efficiency

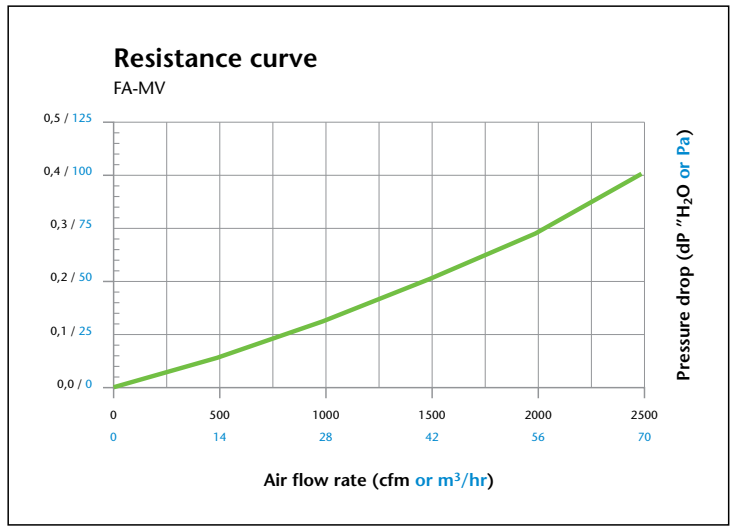

Resistance / pressure drop
The fractional-efficiency legend lists 73 Pa beside 0.287 in., while the performance table lists 71 Pa beside 0.287 in. w.g. Both source labels are retained; confirm the applicable test value for your specification.
Request the current technical data sheetSpecify your V-bank filter.
Need a custom configuration? Contact FIRSTAIR for assistance with size, airflow and application requirements.
Send your company and contact details, filter size, quantity, application and existing part number. You can attach product photos or a specification to your request.
